Receivers for Garage Door/ Gate and Other Applications
General Purpose & Access Control

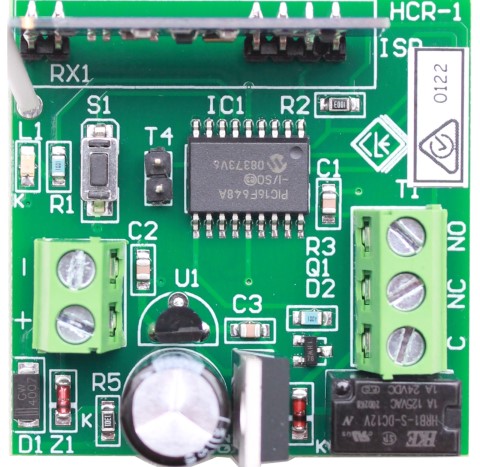

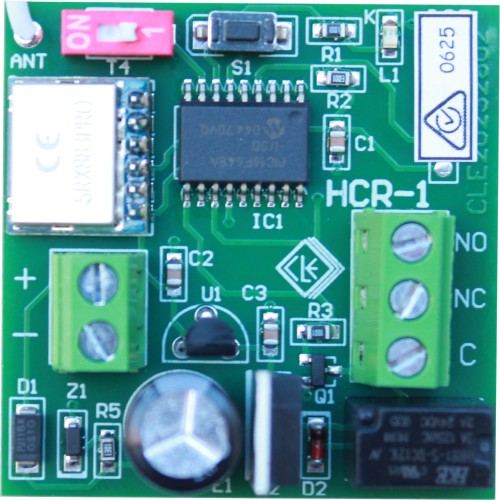

HCR-1
HCR-1 – The HCR-1 is a 433.92Mhz single channel SPDT relay out superheterodyne receiver compatible with all of our transmitter products except the PTP transmitter.
The unique feature of the HCR-1 is the ability to learn ANY button/channel of the SIX used in Circuit Level products to operate the relay output. The HCR-1 is only interested in the rolling code information to learn a transmitter/ keyfob, the channel part of the code is irrelevant. Because of this feature the installer can Learn different buttons on different keyfobs to the one receiver or learn different buttons to individual receivers. This product is very flexible.
The small size makes installation into gate motors, garage doors etc simple. The only requirement is 12 to 24V AC or DC. The HCR-1 is also available in a high quality ABS bulkhead housing.
General Purpose & Access Control

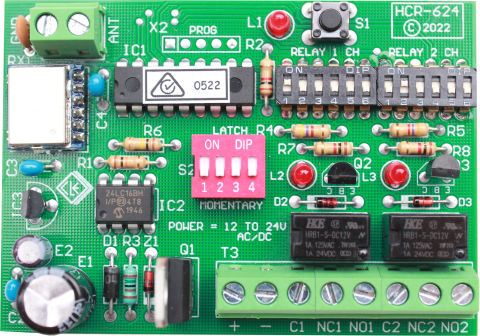

HCR-624
The HCR-624 is a general purpose receiver operating on 433.92Mhz. Two (2) single pole double throw ( SPDT ) relay outputs are available to control external devices. The relays can be configured to be any of six ( 6 ) channels received from our code hopping transmitters.
This receiver is compatible with all of our code hopping transmitters. The HCR-624 can be powered from any 12 to 24V AC or DC supply. This new version allows much greater flexibility in channel selection and features a new improved performance receiver module.
General Purpose & Access Control

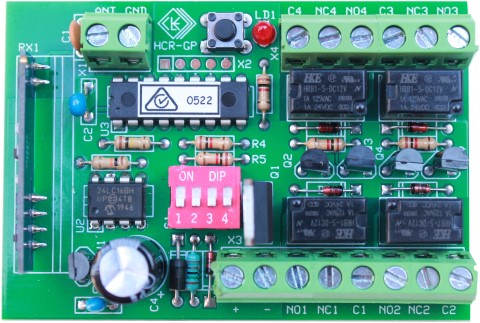

HCR-15
The HCR-15 is a general purpose UHF receiver operating on 433.92mhz. Four single pole double throw (SPDT) outputs are available to control external devices.
The receiver is designed for use with 4 channel keyfobs. This system uses code hopping technology for secure RF transmissions.
General Purpose & Access Control

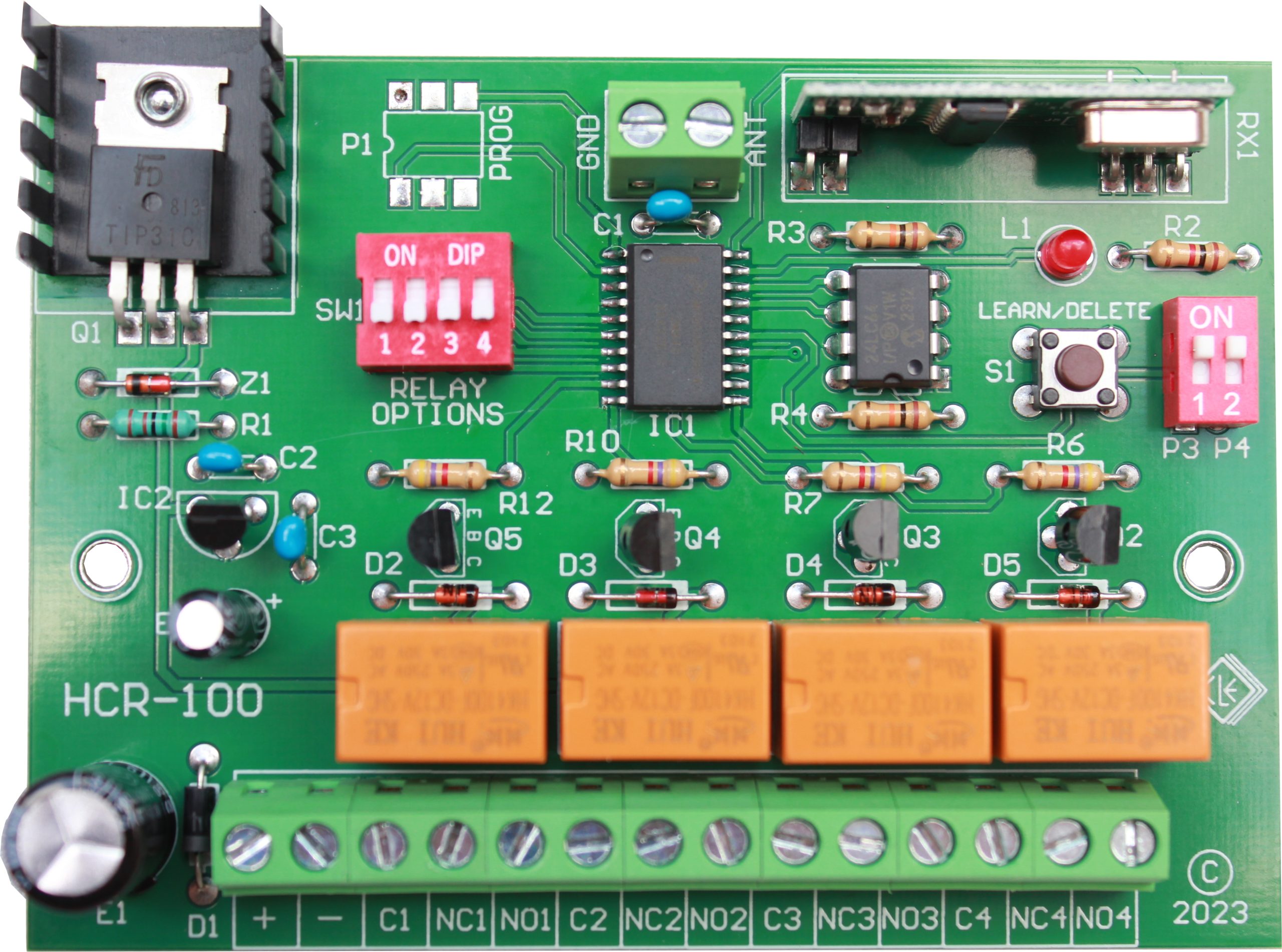

HCR-100
The HCR-100 is a general purpose UHF receiver operating on 433.92mhz. Four single pole double throw (SPDT) outputs are available to control external devices. The receiver is designed for use with 4 channel keyfobs. This system uses code hopping technology for secure RF transmissions. The HCR-100 is an alternative to our popular HCR-15 receiver.
The four (4) relay outputs can be programmed to work with different buttons on individual fobs. This allows full customisation to suit the customer. The HCR-100 also has a timing option for relays 1 and 2 making It suitable for use with door strikes.
General Purpose & Access Control

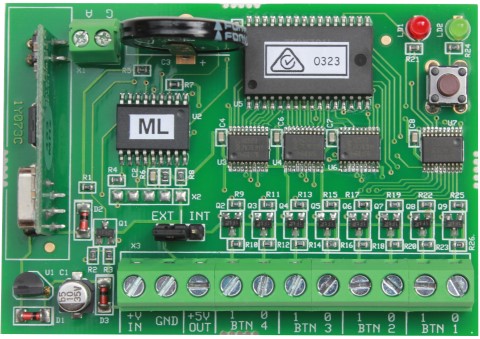

HCR-W4
This product is designed to provide a convenient high security RF interface to an access control system which recognises the Wiegand 26 bit protocol. This makes it compatible with most systems. The HCR-W4 gives long range gate and door control with the HCT-4PW Wiegand keyfobs that can also contain EM or HID proximity tags within. The system can manage up to 32000 users.
General Purpose & Access Control

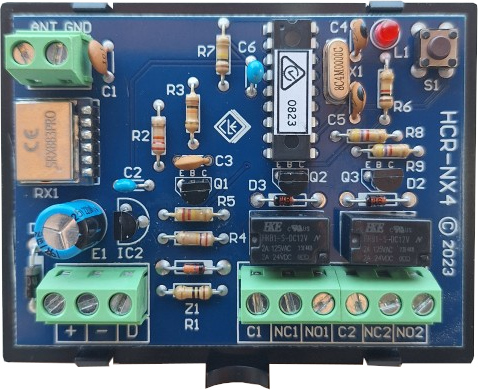

HCR-NX4
This product is compatible with the Hills (™) NX and some of the Reliance range of alarm control panels. It provides an interface to the keypad bus for ARM / DISARM, Duress functions as well as two on board relays for control of garage doors or gates etc.
